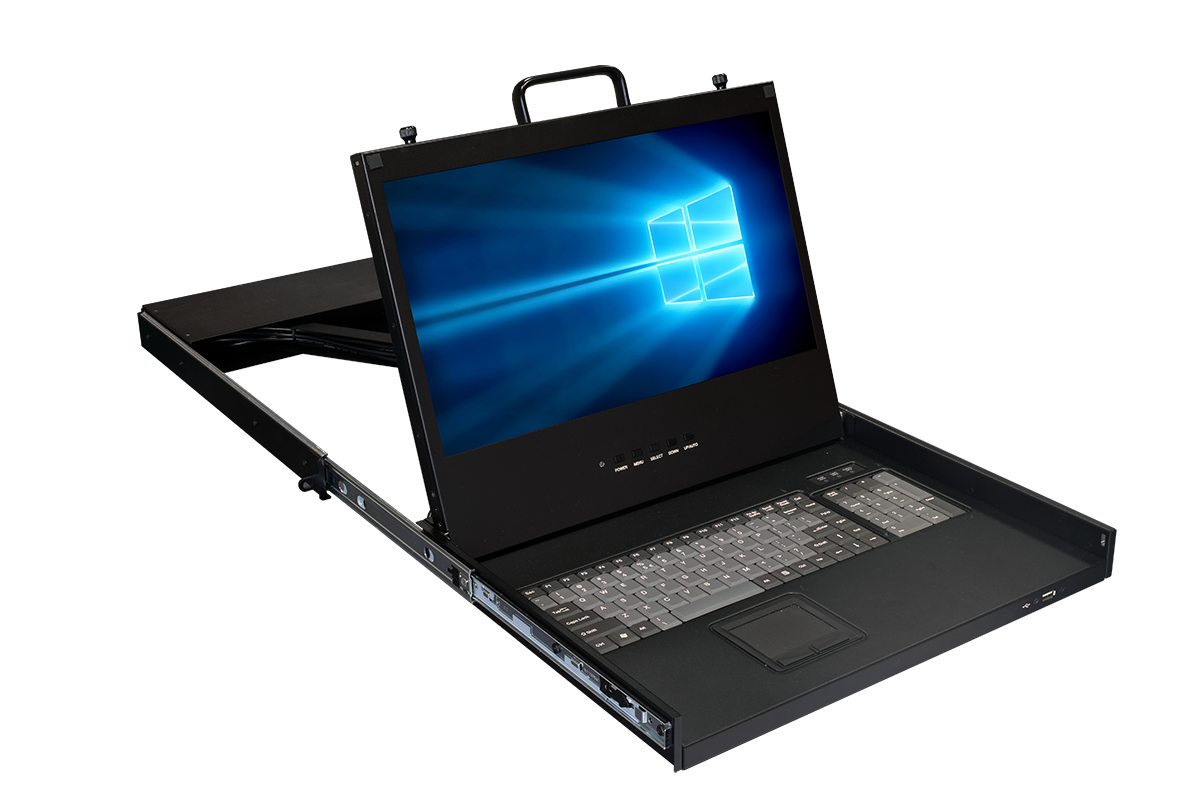

The rack console drawer combines a 17.3" LED-backlit display, keyboard, and touchpad in only 1U of valuable rack space. With built-in VGA, DisplayPort, and HDMI interfaces, it can support a variety of KVM switches for multiple server management. The rack console drawer also provides an extra local console for extended local operations. It's perfect for the administration of servers in data centers, server rooms, and labs.

• 17.3” inch eDP TFT LCD panel, width screen 16:9.

• LED backlight, saving power consumption

• Support video resolution up to 1920x1080@60Hz, 1080p

• Variety of videos, DisplayPort, HDMI and VGA, supported one of among.

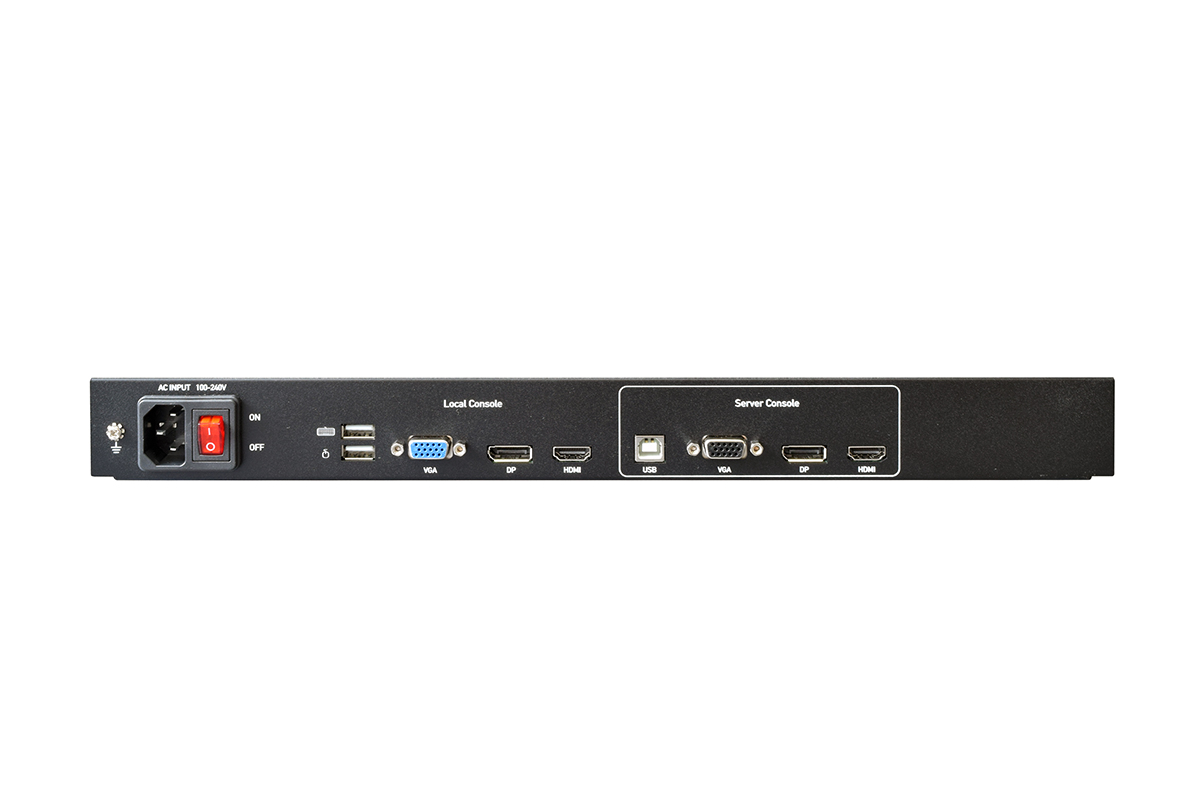

• Local console for intended extending console, USB Keyboard/mouse, videos: HDMI/DP/VGA

• Front USB Hub supports USB HID (KB/MS) and USB storage devices.

• USB console connected with PC/Server.

• Embedded power supply 12V, 5A

• Supports Rack cabinet in depth 52 cm (20.5 inch) ~ 91 cm (35.8 inch) with adjustable mountable bracket

• One person Easy-Installation.

• Screen automatic video-off when frame folding fall down below 30 degree angle.

• OSD buttons on front panel dedicated to required functionality

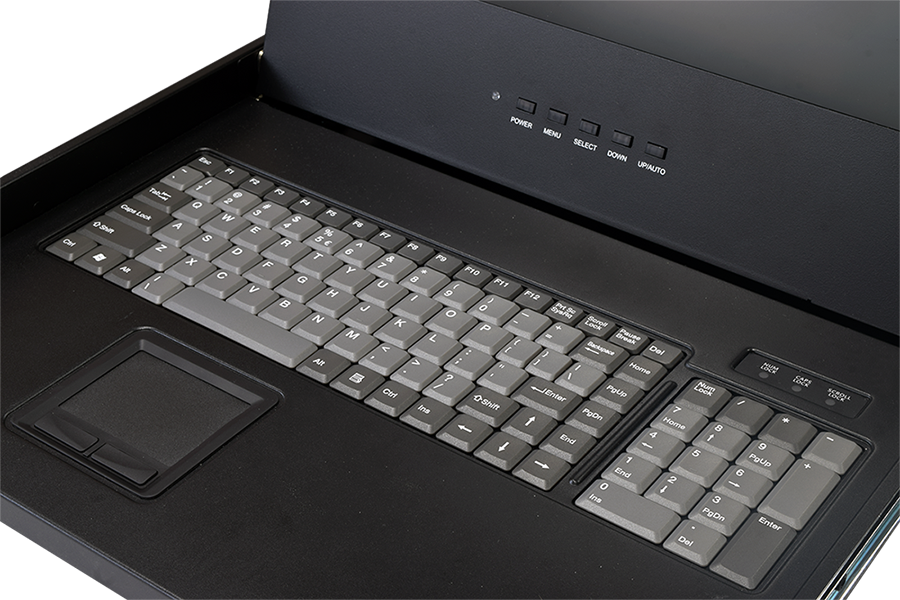

• Easy & convenient removable keyboard module design from bottom, being suitable for multi languages keyboard fit as well
