4K DisplayPort KVM Extender over CAT.x (KDPE4K-1100A)

Model ：KDPE4K-1100A

Digital 4K DisplayPort KVM Extender over CAT.x

overview
features
specifications

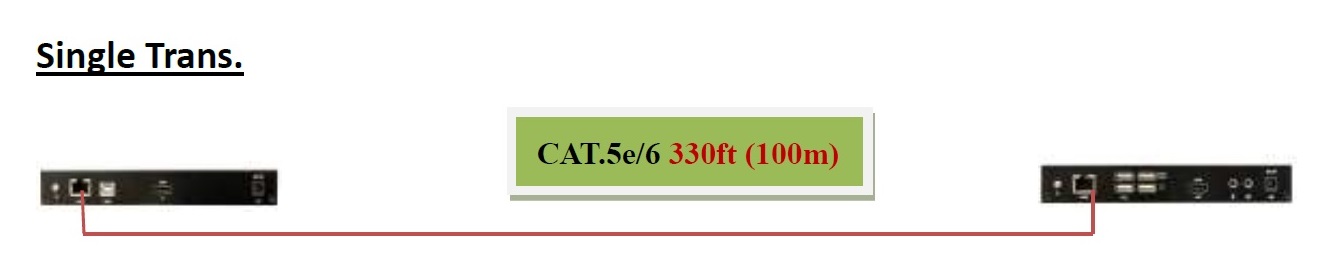

single link

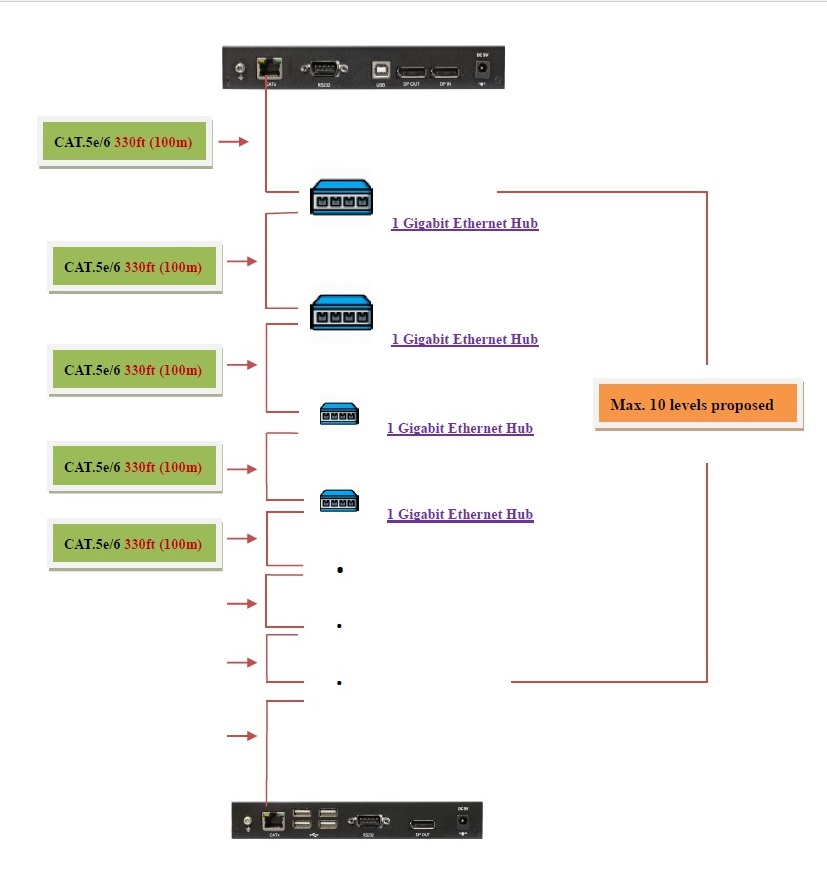

daisy chain

The 4K DisplayPort KVM Extender enables you to locally use the 4K DisplayPort monitor, USB keyboard/mouse/other devices, speaker and microphone to operate the remote computer, server or other IT device featuring 4K DisplayPort video output.

There are two models of the 4K HDMI KVM Extender: one is KDPE4K-1100A via Cat 5e link, and the other is KDPE4K-2100FA via Fiber Optic link.

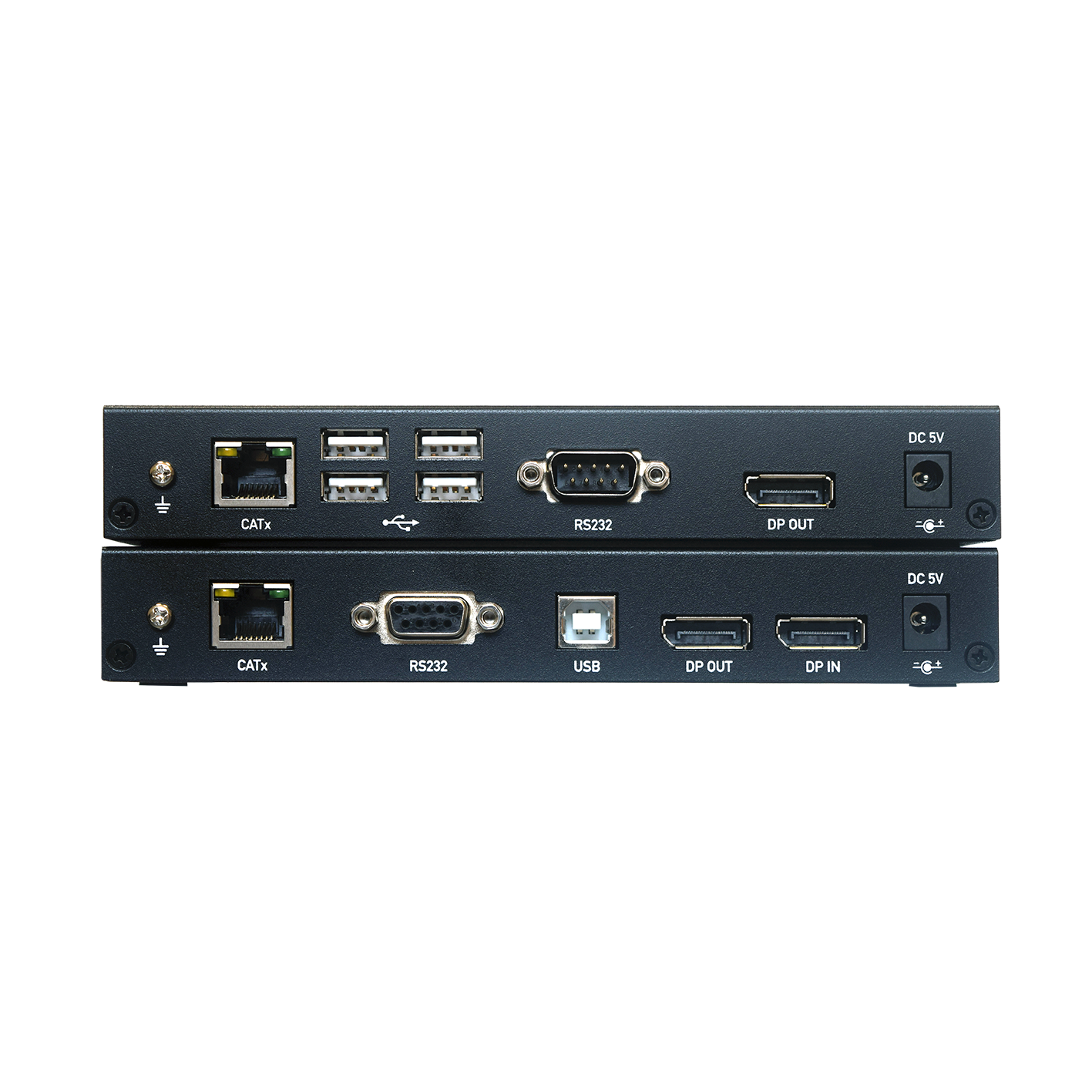

		Transmitter (TX)	Receiver (RX)
Console Connection	Video Output	■Displayport 25-pin, female x 1	■Displayport 25-pin, female x 1
Host Connection	Video Input	■Displayport 25-pin, female x 1	N/A
Extension Port	RJ-45	Video (up to 4K , 3840x2160@30Hz, 4:4:4 compliant) Audio + RS-232 + USB
USB Interface	Host	USB Type B, female x 1	N/A
	Device	N/A	USB Type A, female x 4 ■Keyboard x 1 ■Mouse x 1 ■Device x 2
Audio		2-way analog audio ■Line IN x1 ■Line Out x1	2-way analog audio ■MIC IN x1 ■Speaker Out x1
Serial Control Port ( RS-232 )		D-SUB 9pin, female x 1, Baud Rate 115,200bps	D-SUB 9pin, male x 1, Baud Rate 115,200bps
LED Indicator		■Power : Red LED
DDC Supported		DDC, DDC2, DDC2B
Extension Cable Type & Length		CAT.5e/CAT.6 Extending Distance : 330 ft (100m)
Max. Video Resolution		4K, 3840x2160@30Hz, Chroma Subsampling 4:4:4 complaint
OS Compatibility		OS Independent ( Wins, Mac, Linux )
Power Supply		External DC 5V / 2A Power Supply
Dimension ( L x W x H )		7.09”(180mm) x 3.27”(83mm) x 1.06” (27mm)
Weight		350 g		370 g
Housing material		Chassis Metal
Operating Temperature		32 ~ 122°F ( 0 ~ 50°C )
Storage Temperature		-4 ~ 140°F ( -20 ~ 60°C )
Humidity		0% - 80% RH
