DVI KVM Extender over SFP Fiber (KDVE-2100FA)

Model ：KDVE-2100FA

Digital DVI KVM Extender over SFP Fiber

overview
features
specifications

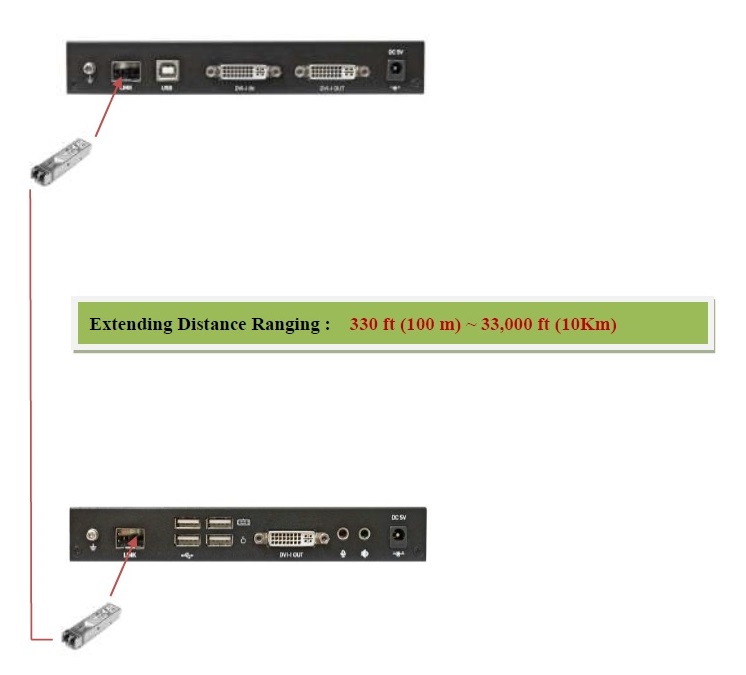

connection

The DVI KVM Extender enables you to locally use the DVI monitor, USB keyboard/mouse/other devices, speaker and microphone to operate the remote computer, server or other IT device featuring DVI video output.

There are two models of the DVI KVM Extender: firstly is KDVE-1100A via Cat 5e link, and the other is KDVE-2100FA via Fiber Optic link.

		Transmitter (TX)	Receiver (RX)
Console Connection	Video Output	■DVI-I 24+5-pin, female x 1	■DVI-I 24+5-pin, female x 1
Host Connection	Video Input	■DVI-I 24+5-pin, female x 1	N/A
Extension Port	SFP (Optical Fiber)	Support 1 Gigabit Fiber Optic SFP Module Video (up to 1920x1200@60Hz) Audio + RS-232 + USB
USB Interface	Host	USB Type B, female x 1	N/A
	Device	N/A	USB Type A, female x 4 ■Keyboard x 1 ■Mouse x 1 ■Device x 2
Audio		2-way analog audio ■Line IN x1 ■Line Out x1	2-way analog audio ■MIC IN x1 ■Speaker Out x1
Serial Control Port ( RS-232 )		D-SUB 9pin, female x 1, Baud Rate 115,200bps	D-SUB 9pin, male x 1, Baud Rate 115,200bps
LED Indicator		■Power : Red LED
DDC Supported		DDC, DDC2, DDC2B
Extension Cable Type & Length		Fiber SFP module Extending Distance: ranging 330 ft (100m) to 66,000 ft (20Km)
Max. Video Resolution		1920x1200@60Hz
OS Compatibility		OS Independent (Wins, Mac, SUN, Linux )
Power Supply		External DC 5V / 2A Power Supply
Dimension ( L x W x H )		7.09”(180mm) x 3.27”(83mm) x 1.06” (27mm)
Weight		350 g	370 g
Housing material		Chassis Metal
Operating Temperature		32 ~ 122°F ( 0 ~ 50°C )
Storage Temperature		-4 ~ 140°F ( -20 ~ 60°C )
Humidity		0% - 80% RH
