4K HDMI KVM Extender over SFP Fiber (KHE4K-2100LFA)

Model ：KHE4K-2100LFA

Digital 4K HDMI KVM Extender over SFP Fiber

overview
features
specifications

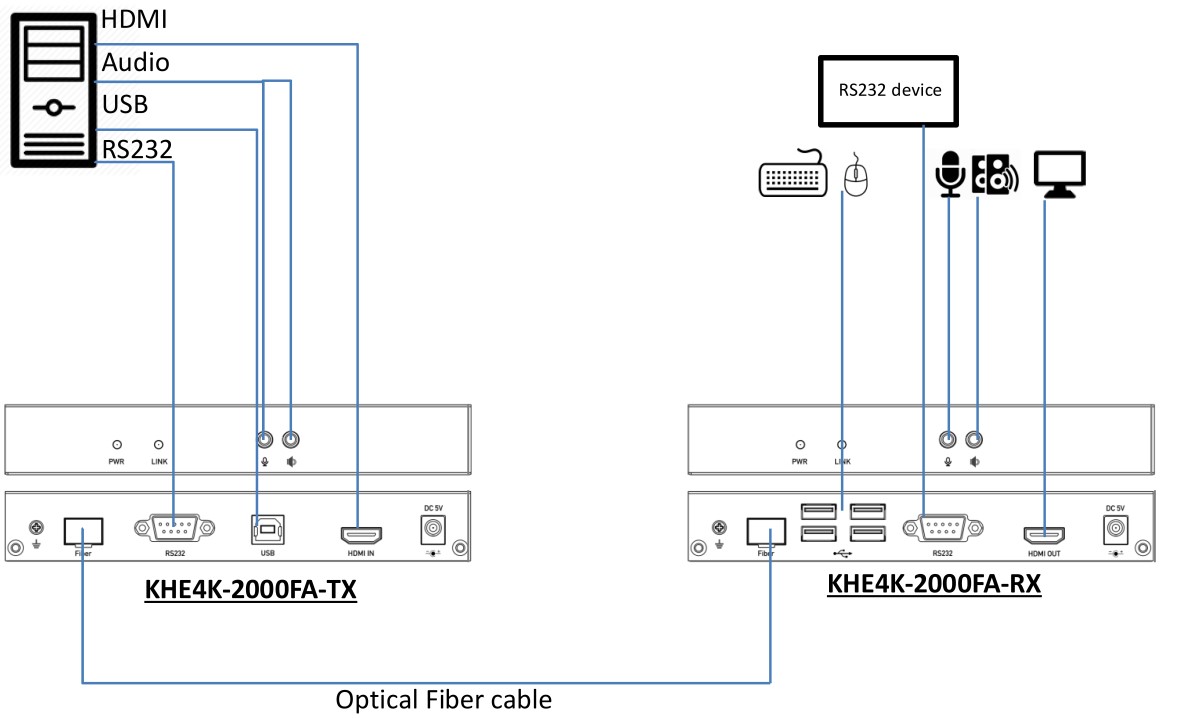

connection

The 4K HDMI KVM Extender enables you to locally use the 4K HDMI monitor, USB keyboard/mouse/other devices, speaker and microphone to operate the remote computer, server or other IT device featuring 4K HDMI video output.

There are two models of the 4K HDMI KVM Extender: one is KHE4K-1100LA via Cat 5e link, and the other is KHE4K-2100LFA via Fiber Optic link.

Similar products

4K/60 HDMI & DP Single-head KVM Extender over Fiber (KHDPE4K-3000F)

4K/60 HDMI & DP Single-head KVM Extender over CAT.x (KHDPE4K-3000)

4K HDMI Dual-head KVM Extender over SFP Fiber (KHE4K-DH-2100FA)

4K HDMI Dual-head KVM Extender over CAT.x (KHE4K-DH-1100A)

4K HDMI/DisplayPort Dual-head KVM Extender over SFP Fiber (KHPE4K-DH-2100FA)

4K HDMI/DisplayPort Dual-head KVM Extender over CAT.x (KHPE4K-DH-1100A)

4K HDMI KVM Extender over CAT.x -IP (KHE4K-1100LA)

		Transmitter (TX)	Receiver (RX)
Video Port	Input	HDMI connector, female x 1	N/A
	Output	HDMI connector, female x 1	HDMI connector, female x 1
USB Port	Host	USB type B connector, female x 1	N/A
	Device	N/A	USB type A connector, female x 4
Audio Port		3.5 mm phone jack ■microphone in x1 ■speaker out x1
RS232 Extension Port		D-SUB 9pin, female x 1 (fixed baud rate: 115200)	D-SUB 9pin, male x 1 (fixed baud rate: 115200)
Link Port	SFP	Optic Fiber cable – max. length: 66,000 feet (20 kilometers) SFP module Bandwidth requirement: minimum. 1 Gbps *maximum extension distance depending on SFP
LED indicator		■Power : Red LED ■Link : Green LED
DDC Supported		DDC, DDC2, DDC2B
Max. Video Resolution		4K @ 30 Hz
OS Compatibility		OS Independent
Power Supply		External DC 5V / 2A Power Supply
Dimension ( L x W x H )		7.09”(180mm) x 3.27”(83mm) x 1.06” (27mm)
Weight		372g	378 g
Housing material		Chassis Metal
Operating Temperature		32 ~ 122°F ( 0 ~ 50°C )
Storage Temperature		-4 ~ 140°F ( -20 ~ 60°C )
Humidity		0% - 80% RH
