HSE-1025 is the state-of-the-art Over-IP HDMI USB Matrix Extender which can simultaneously support the extensions of HOM I 1080p, USB2.0 and audio line-in/out via a single Cat 5 cable in all LAN topologies.

With the advanced IP-based AV/PC extension technology, HSE-1025 features the visually lossless image quality HOM I-over-IP extension, hardwired USB-over-lP extension, 4-port USB hub, IP-controlled connection management, low video stream latency and flexible function customization.

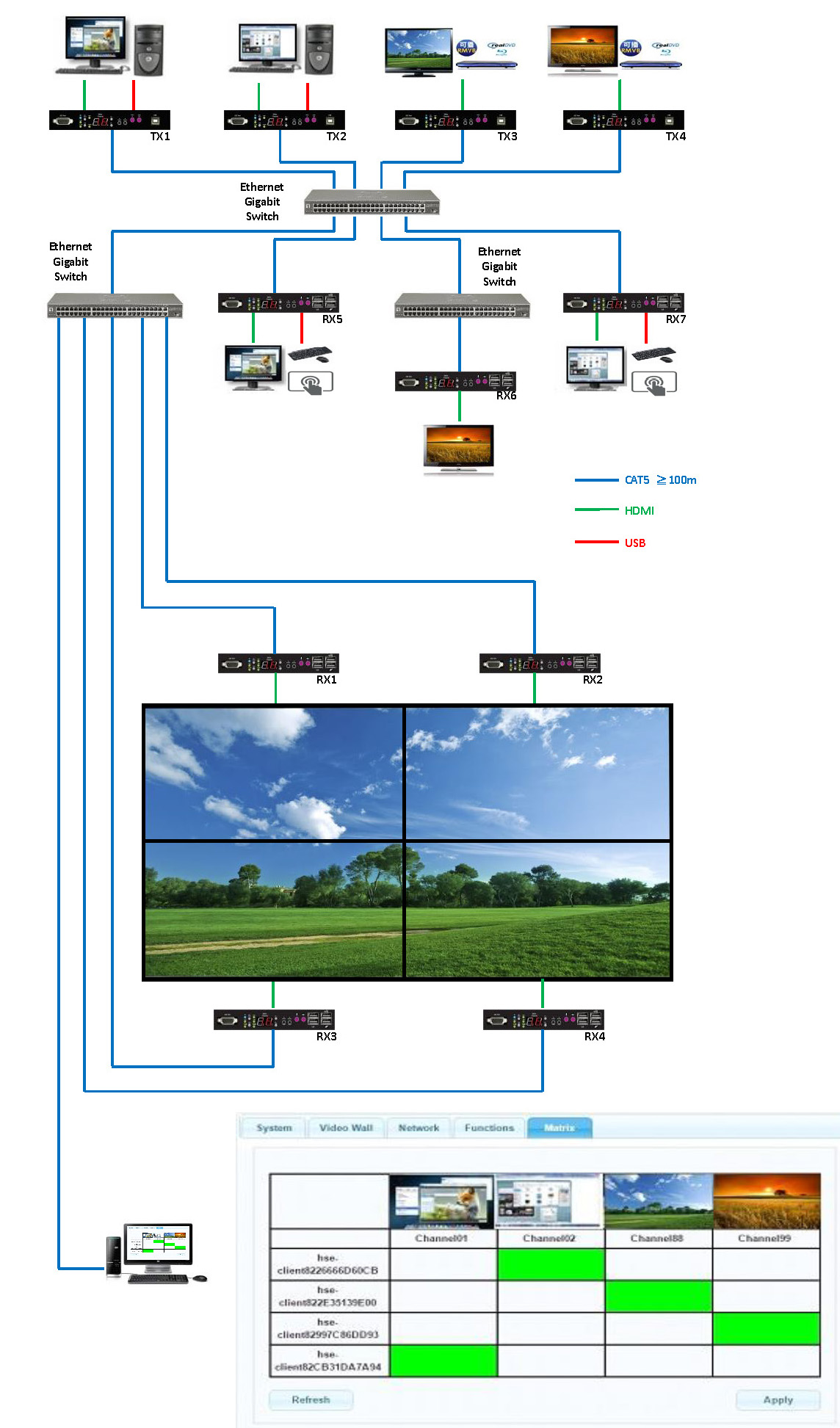

HSE-1025 is capable of the varied connection topologies on the LAN by using Ethernet Gigabit Switch, including (1) lxl (extending up to 100m) (2) daisy chain (3) broadcasting (4) matrix (5) any-size video wall. Besides, HSE-1025 has the built-in Web UI supporting the easy, convenient and friendly SW control for connection and video wall management.

• Only using one UTP/STP CAT5e/6 or Fiber Optic cable alternatively required
• Adopt visually lossless compression algorithm
• HDMI Digital Audio/Video extended distance up to 100 meters (330 feet) between Transmitter and Receiver (point-to-point); up to 10 kilometers between Transmitter and Receiver over Fiber Optic cabling which is compatible for standard SFP (Small Form Plug) module, no matter to Single/Multi Modes, the effective distance extended based on the quality of Fiber Optic and Transceiver modules accordingly.
• Support Full HD video 1080p, and 1920 x 1200 (WUXGA) 32bps@60Hz (reduced blanking)
• Support all 3D image format
• Support repeating/distributing/matrix extension through Gigabit Ethernet Switch being transceiver suited for both of Transmitter and Receiver units
• Compatible with USB 2.0 data transmitted rates up to 480 Mbps and backward with USB 1.1

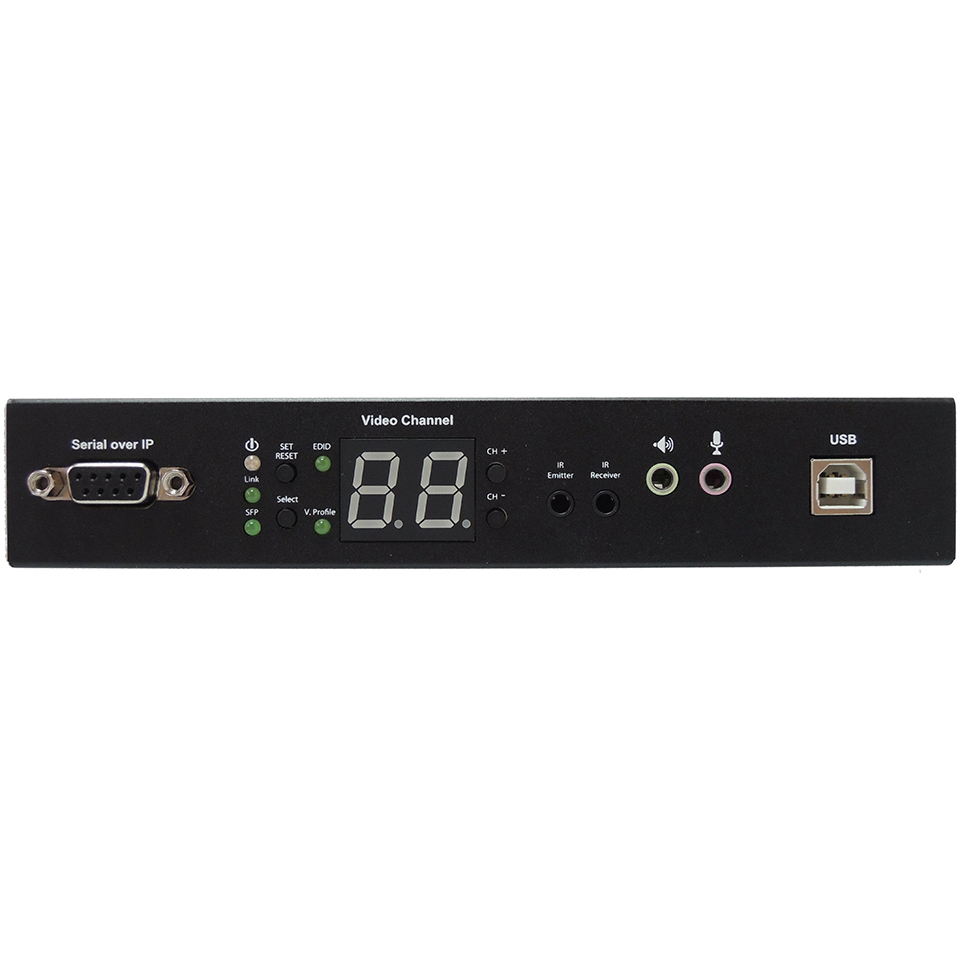

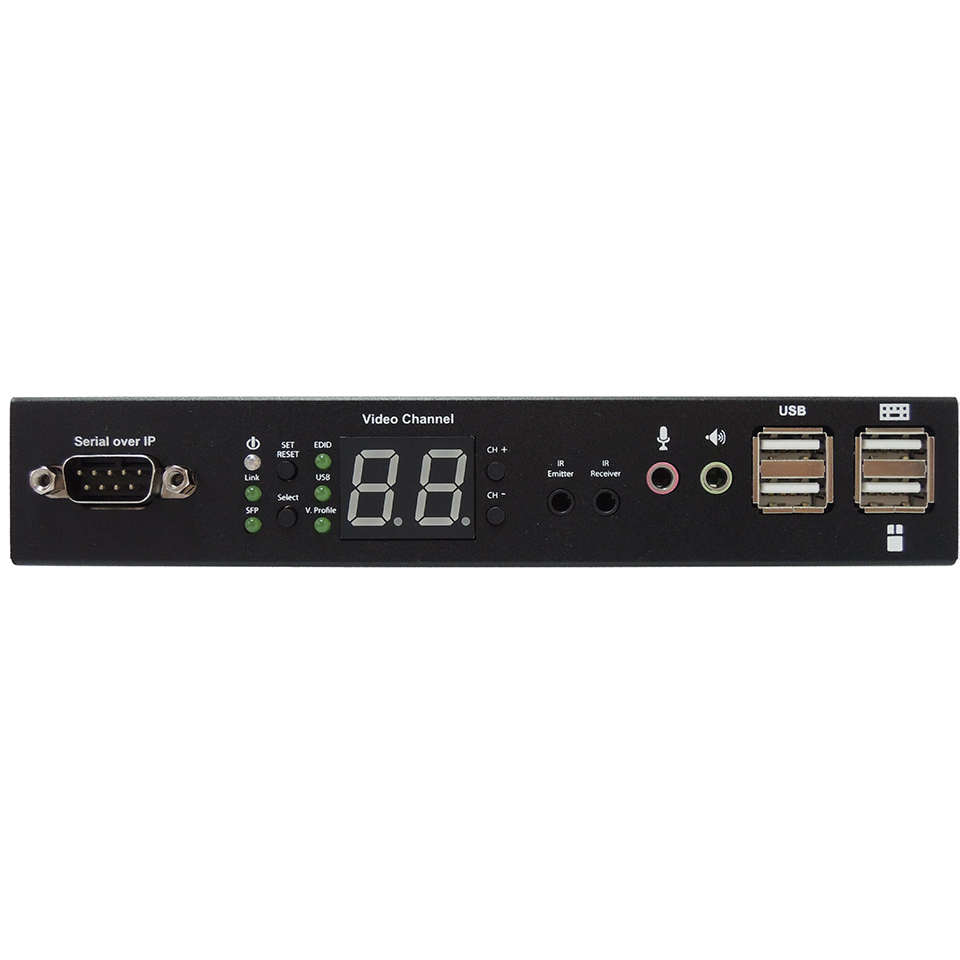

  (Transmitter : 1 port USB-B type Host Interface  /  Receiver : 4 ports USB-A type Device Interface)
• Mapping different Transmitter sources, even grouping loop for each Receiver by corresponding to video channel
• Wall-mount housing design with rack mountable bracket for easy and robust installation
• Audio support 7.1CH LPCM, DTS, Dolby, analog LINE-IN/LINE-OUT
• Support both of Interlaced and Progressive Display Modes
• Support DDC/DDC2B, Hot-Plug Detection (HPD) and HDCP compliant
• Support Default EDID and EDID copy function for optimal PC-to-Screen performance
• Bidirectional Infrared Remote (IR) signal and RS232 control communication (Transmitter & Receiver)
• Support dual video output (HDMI & DVI/VGA) in Receiver unit

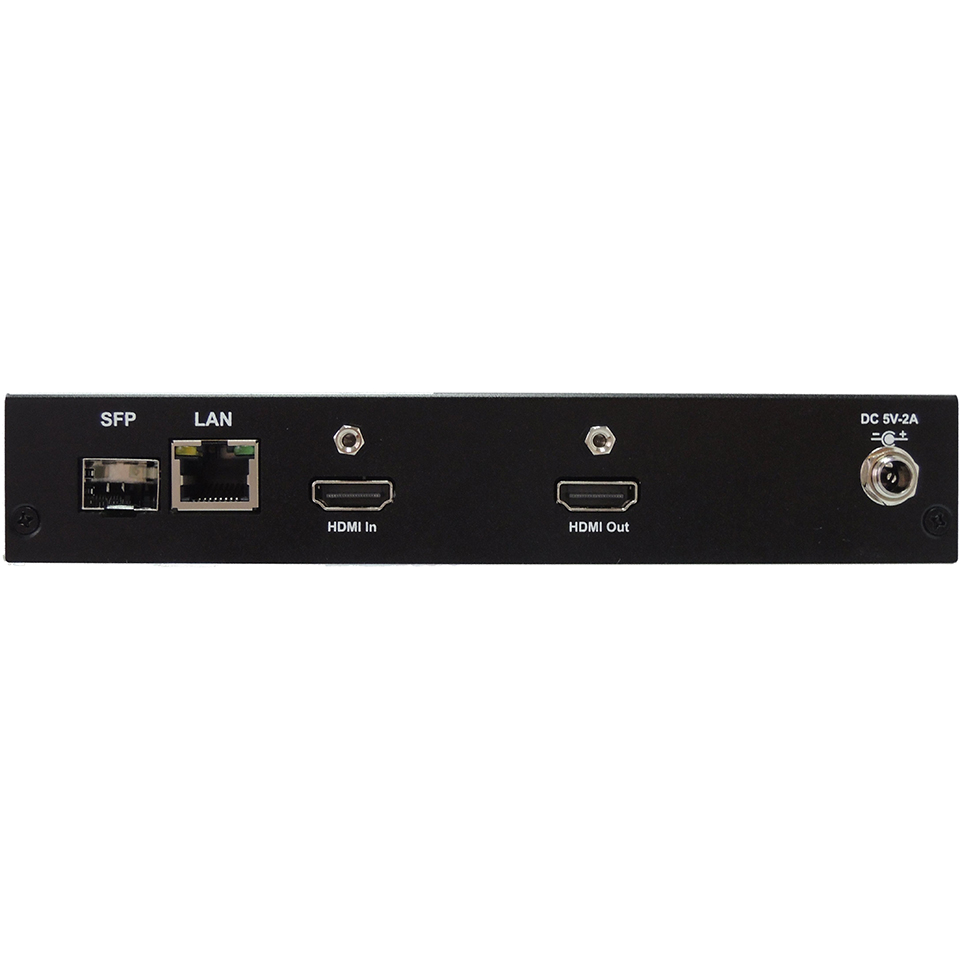

• Support HDMI local loopback output in Transmitter unit
• 7-segment LED display for video channel indication
• IR remote control for video channel setting
• Support PD of POE (optional)

Advanced features:

• Web-UI shows the linking connections status included all of Transmitter (TX) and Receiver (RX)
• TX-RX connection switching control by operation of web-UI, push buttons, IR remote control or keyboard Hot-Key
• Firmware upgraded by web-UI control
• Visualize video wall configuration
• Redundant Flash ROM for FW recovery from the failed update
• Two-digit LED display indicates current transmitting and receiving channel
• Total 99 selectable channels to transmit or receive
