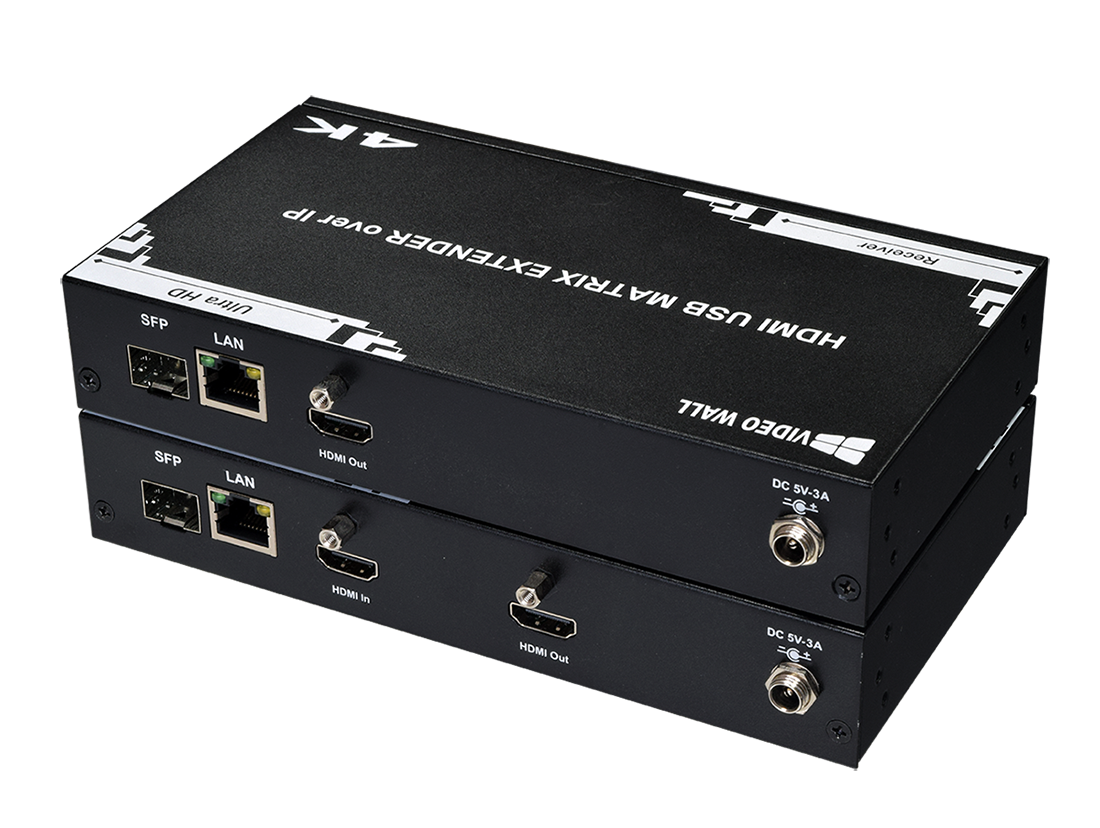

4K HDMI USB Matrix Extender over IP allows user to extends HDMI, USB, Audio, RS232, and IR over IP via CAT.x or Optic Fiber alternatively, further repeating and distributing through over Gigabit Ethernet Switch.

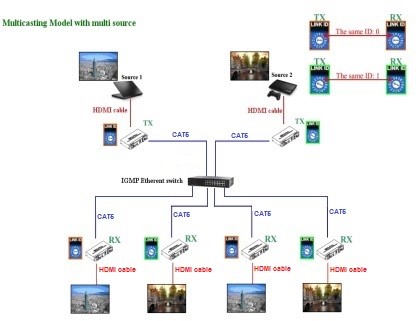

Multicasting support multiple Transmitters (TX) and Receivers (RX) which are also capable of engaging in cross-points matrix architecture connection. To be allowed 7.1 CH audio and complied 3D video, USB 2.0/1.1 with transmission. The web-UI built in makes configuration and operation to control software easily and conveniently for proceeding functionalities.

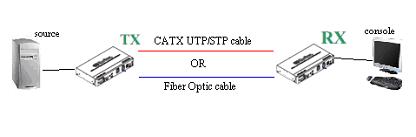

• Only using one UTP/STP CAT5e/6 or Fiber Optic cable alternatively required.
• Adopts visually lossless compression algorithm
• HDMI Digital Audio/Video extended distance up to 100 meters (330 feet) between Transmitter and Receiver (point-to-point); up to 10 kilometers between Transmitter and Receiver over Fiber Optic cabling which is compatible for standard SFP (Small Form Plug) module, no matter to Single/Multi Modes, the effective distance extended based on the quality of Fiber Optic and Transceiver modules accordingly.
• Compatible with Ultra HD video 4K/2K, and 1920 x 1200 (WUXGA) 32bps@60Hz (reduced blanking).
• Supports all 3D image format
• Supports repeating/distributing/matrix extension through Gigabit Ethernet Switch being transceiver suited for both of Transmitter and Receiver units.
• Compatible with USB 2.0 data transmitted rates up to 480 Mbps and backward with USB 1.1 (Transmitter : 1 port USB-B type Host Interface  /  Receiver : 4 ports USB-A type Device Interface)
  •  Mapping different Transmitter sources, even grouping loop for each Receiver by corresponding to video channel.
• Wall-mount housing design with rack mountable bracket for easy and robust installation.
• Audio supports 7.1CH LPCM, DTS, Dolby, analog LINE-IN/LINE-OUT.
• Automatic Display Mode Detection.
• Supports both of Interlaced and Progressive Display Modes.
• Supports DDC/DDC2B, Hot-Plug Detection (HPD) and HDCP compliant.
• Supports Default EDID and EDID copy function for optimal PC-to-Screen performance.
• Bidirectional Infrared Remote (IR) signal and RS232 control communication (Transmitter & Receiver).
• Supports a local distributing DVI-I output at Receiver unit. (DVI – Digital & Analog).

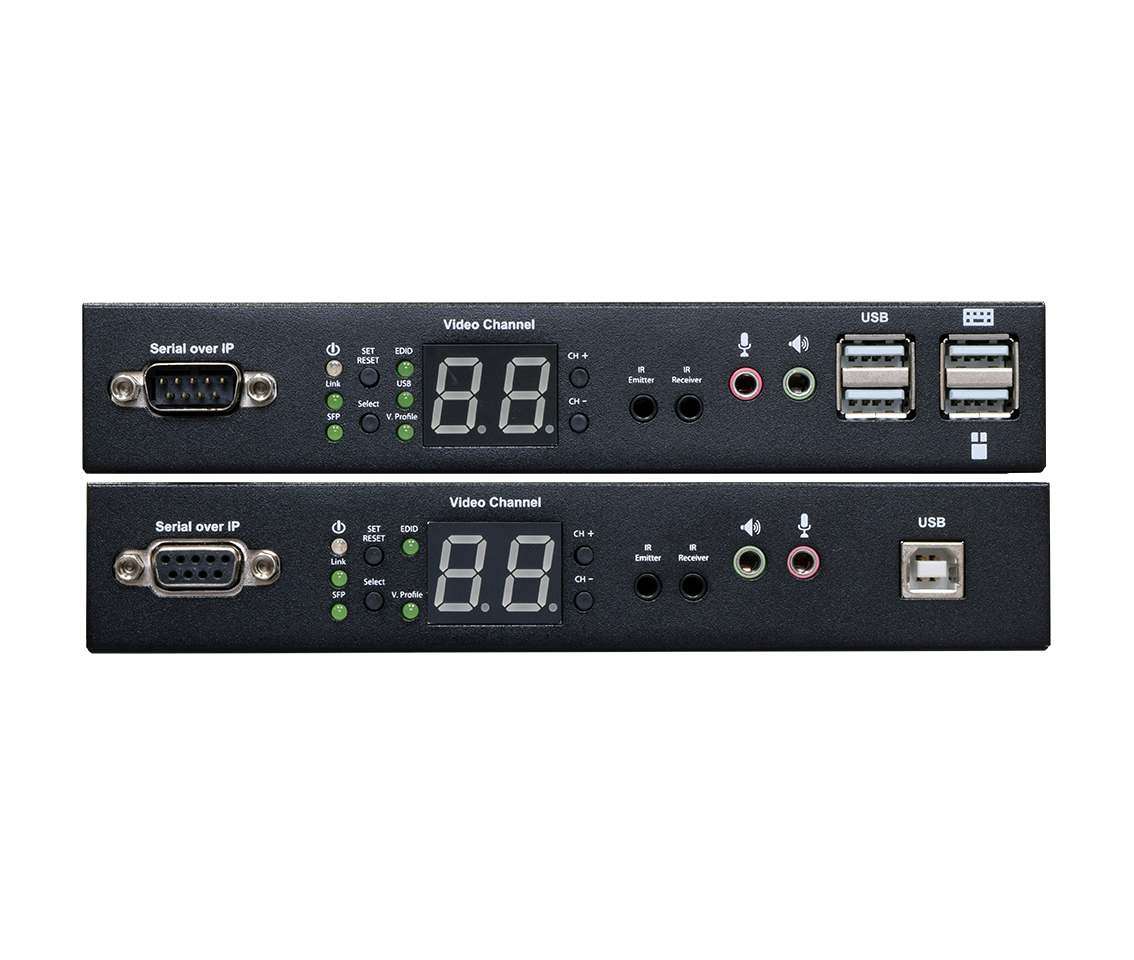

• 7-segment LED display for video channel indication
• IR remote control for video channel setting
• Supports PD of POE (option)

Advanced features:

• Web-UI shows the linking connections status included all of Transmitter (TX) and Receiver (RX).
• Connection switching control by operation of web-UI, push buttons or IR remote control.
• Firmware upgraded by web-UI control.

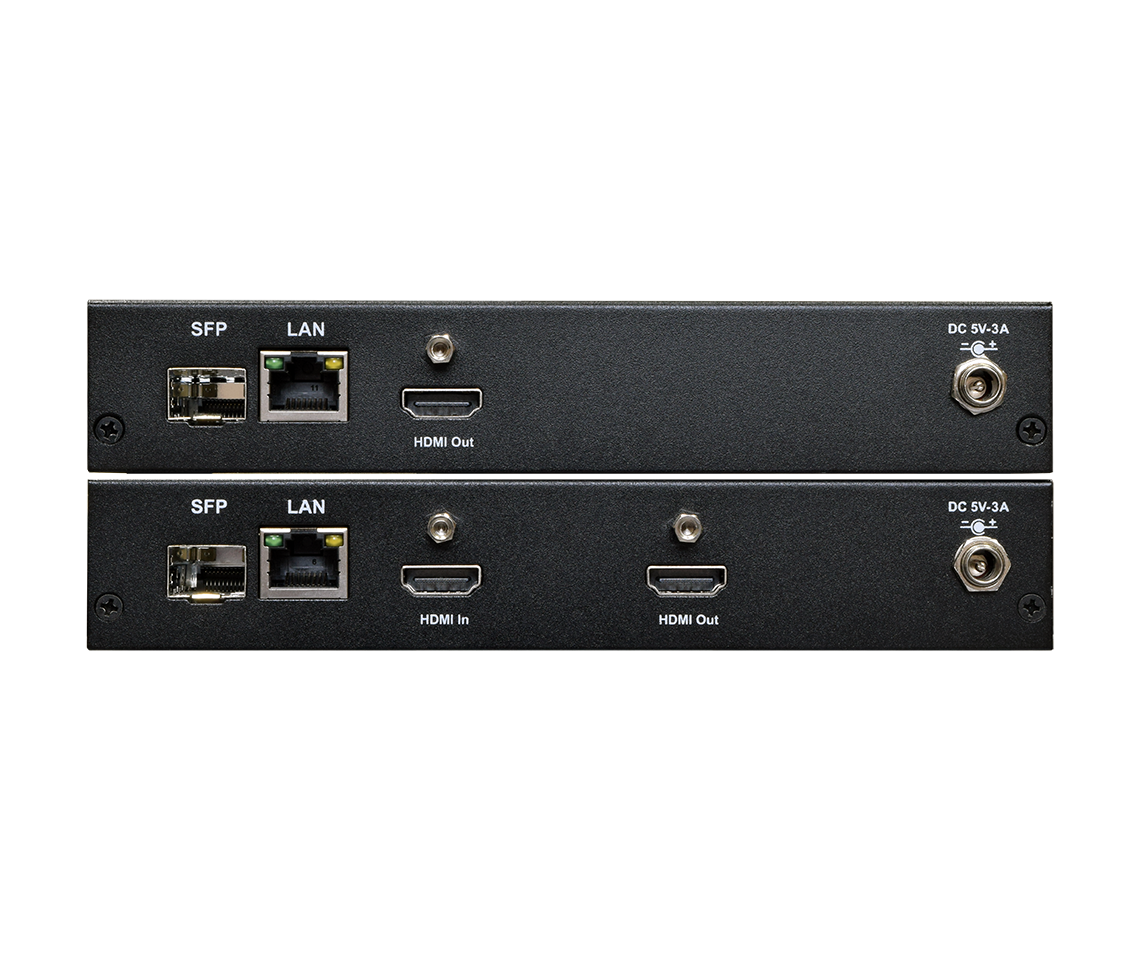

• The Receiver (RX) unit supports 2 video out, HDMI video and DVI-I out synchronized.
• The Transmitter (TX) unit supports HDMI-in and monitoring HDMI-out synchronized.
• Redundant Flash ROM for FW recovery from the failed update.
